GE TFX28PBD Water Door Dispenser Slow Water Flow

by Samurai Appliance Repair Man on August 15, 2010

in Refrigerator Repair

Randy wrote:

The door dispenser will eventually have a good flow when holding the switch with a cup in the door. I have changed the filter. If used frequently within the hour, the unit dispenses as it should. If it sits for more than few hours the delay starts. You can hear the pump activate when the door witch is engaged. The Ice Maker works flawlessly and continues to output good ice and quantity. No leaks under unit. All hoses on back of unit are straight and not kinked. I verified the same of the connections where the water supply enters the unit.

Some thoughts and direction would be appreciated.

Thanks,

Randy B

First, you should know that there’s no pump– the water flows out under normal water pressure in your house. If you’re hearing a humming sound, that’s probably the coil on the water inlet solenoid valve in back.

What’s happened with your dispenser is that the water inlet valve for the dispenser has gone “lame,” as we say in the trade. Your water inlet valve is located in back of the refrigerator, behind the service panel as shown in the following two photos:

GE TFX28PBD Water Inlet Valve 1

GE TFX28PBD Water Inlet Valve 2

(click the pics for larger views)

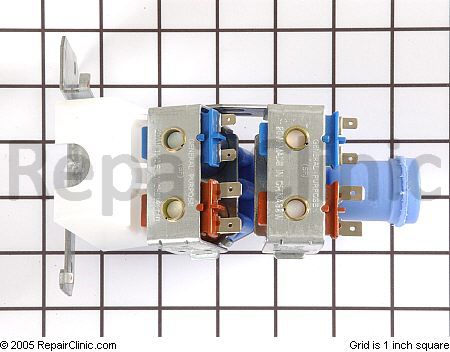

The circled blue valves in the photo above are the dispenser valve. But this is all one assembly and the entire assembly is replaced as a set. Here’s the new and improved replacement water inlet valve assembly you need, comes with complete, illustrated destructions, too:

Water inlet valve conversion kit w/tubing and instructions. Includes both primary and secondary valves together.

(click it to git it)

Fun Fact to Know and Tell: Whenever you change the filter, you should run a good amount of water through the system, this will hopefully push out any air which gets trapped in the system which can later cause air cushions.

To learn more about your refrigerator, or to order parts, click here.
